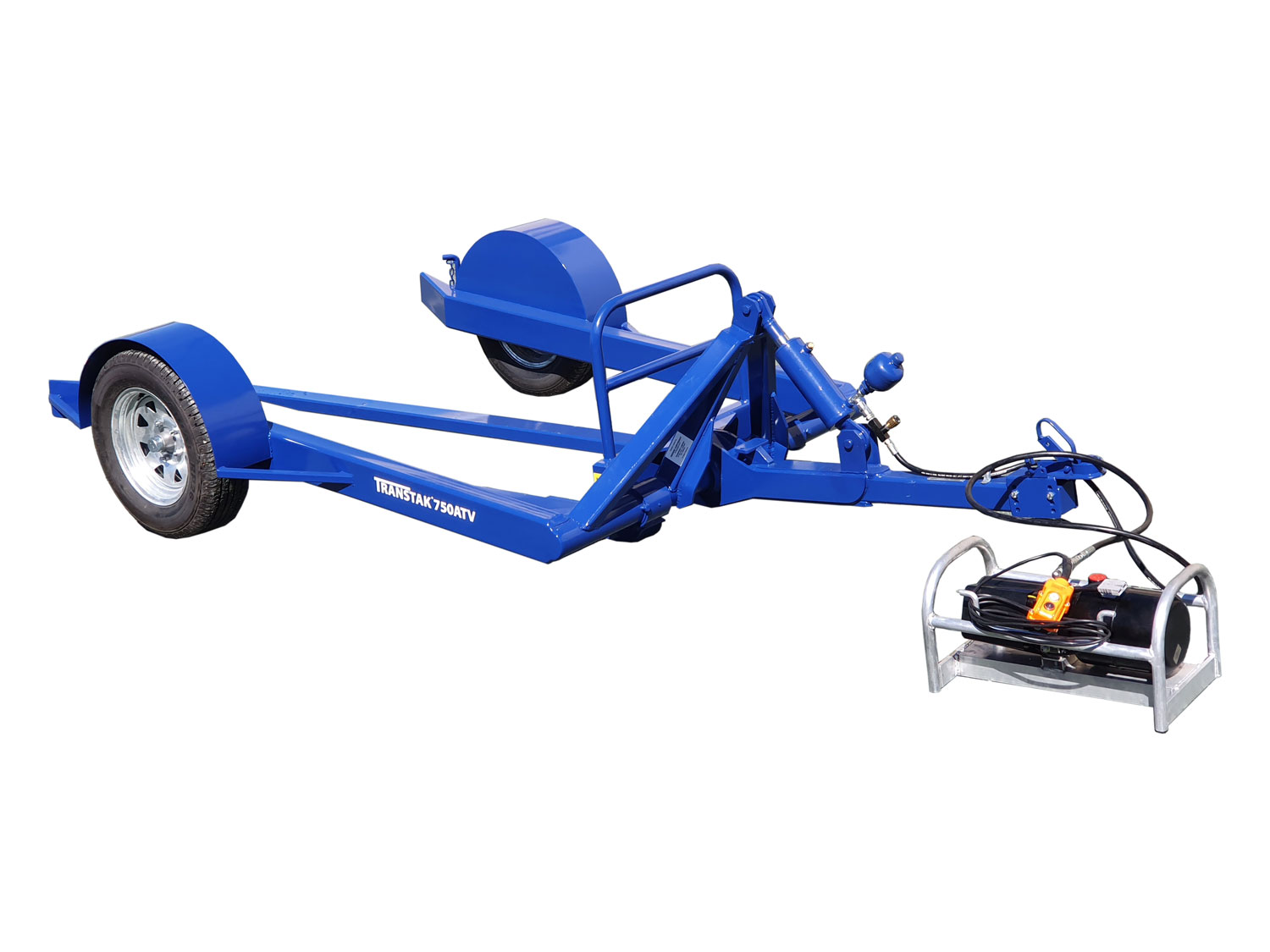

Compact, tough, and built for orchard work. The 750ATV carries two full bins with a load capacity of 800kg and uses a 12V electro-hydraulic powerpack for easy lifting and lowering.

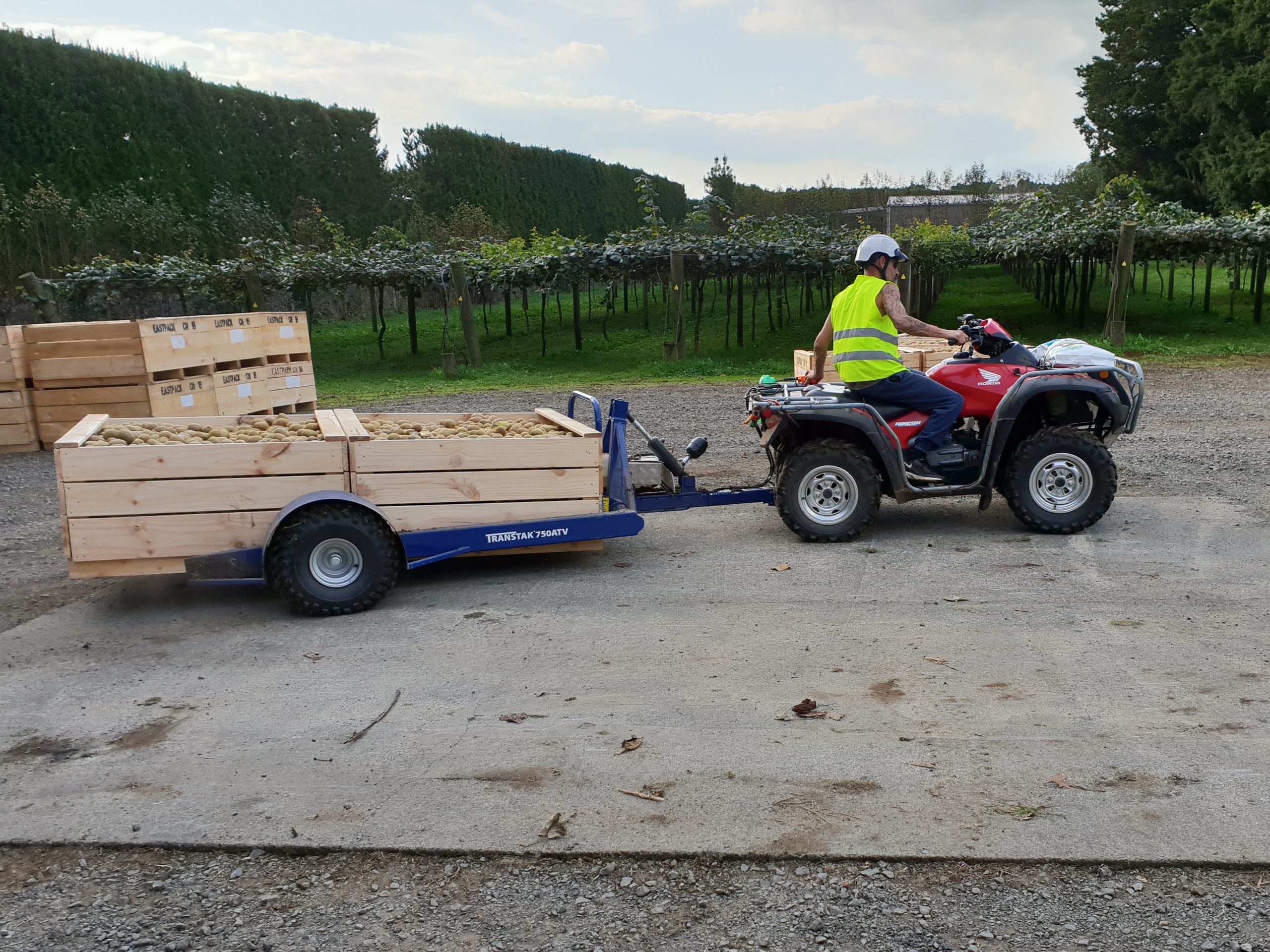

Its small size and soft-ride suspension make it ideal for navigating tight orchard blocks, protecting the fruit & providing an efficient way to service picking teams and move bins with a small tractor or large side-by side or ATV.
Built tough for New Zealand’s varied terrain, the 750ATV offers reliable performance in both small and large-scale operations, complementing our larger range of trailers and handling up to 100 bins per day during peak harvest.
Ready to put the 750ATV to work in your orchard? Get in touch today!
Capable of handling around 50–100 bins per day and more in some cases. This compact bin trailer punches above its weight in efficiency and performance.
With a fork load area of 2400mm x 1250mm and overall length & width of only 3600x1850mm, the 750ATV performs within tight orchard blocks without compromising on strength.
Transtak’s Soft-Ride suspension system with fork lower-speed control absorbs bumps and jolts, protecting your fruit and maximizing packouts.
Electro-hydraulic 12V powerpack with hand-held control pendant for easy lift and lower
Soft-Ride hydraulic accumulator suspension with lower-speed control for smooth bin handling
Fork load area: 2400mm x 1300mm
Overall width: 1850mm
Wheel options: 13” x 5-stud or ATV 8” x 4-stud wheels
Full mudguards & bin guides for protection and bin stability
Adjustable drawbar height & fork angle with bolted dual 1 7/8 or 50mm coupling
Daily bin capacity: 50 – 100 bins depending on use
Capacity
Per Day
Suspension
Stay compliant on road with LED taillights & indicators for improved visibility and safety in all orchard and road conditions. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug.
Powerful LED work lights for early morning or late-night harvesting — keeping your team productive in low light. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug & On/Off Switch
Sturdy Transtak jack stand designed specifically for Transtak bin trailers, provides secure trailer support when connecting & disconnecting trailer, changing tyres & when parked on uneven ground.
Be prepared for the unexpected. A complete spare tyre kit with Tyre Iron, Wheel, Wheel Mount & Jackstand ensures minimal downtime during harvest.
