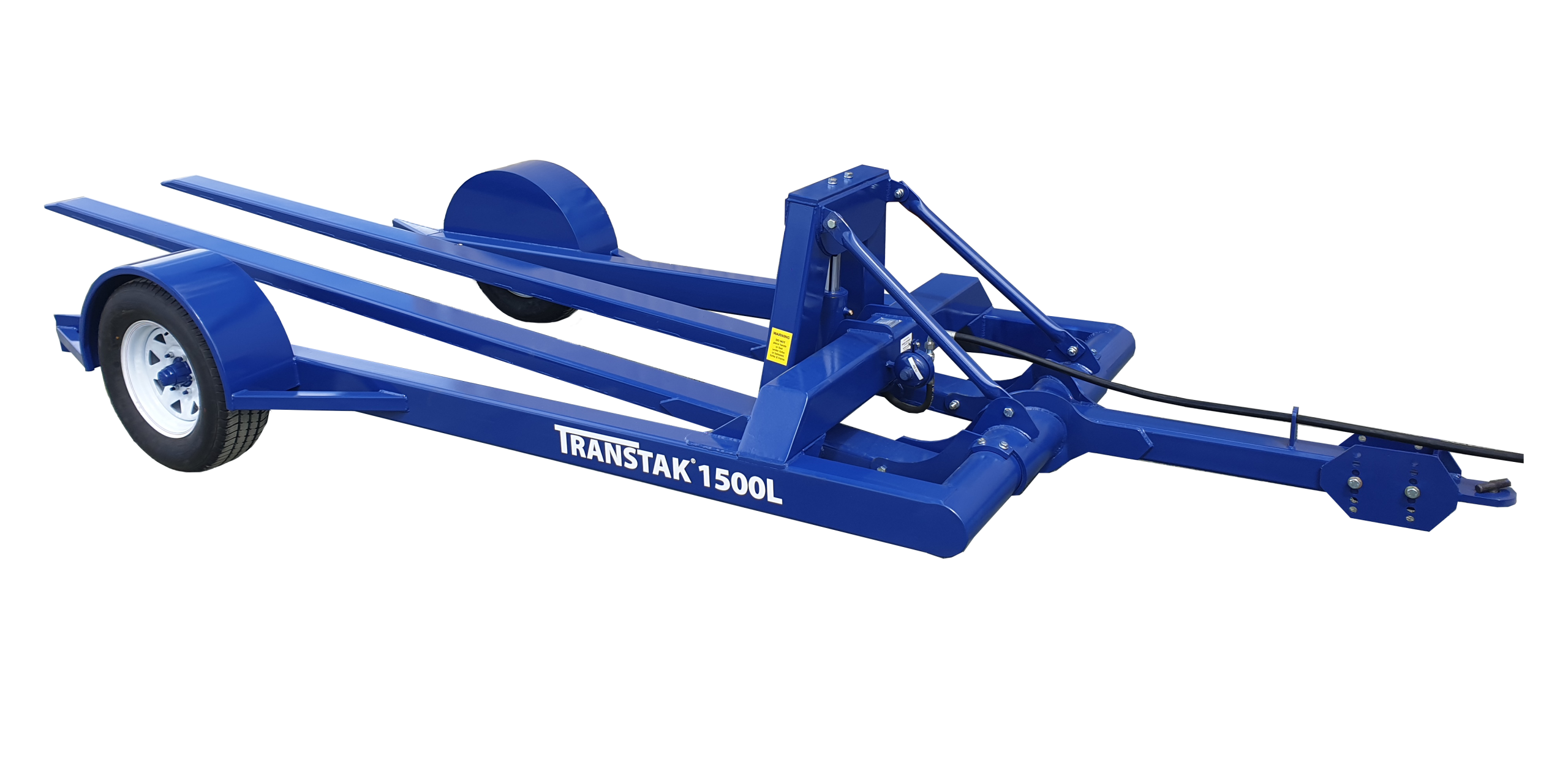

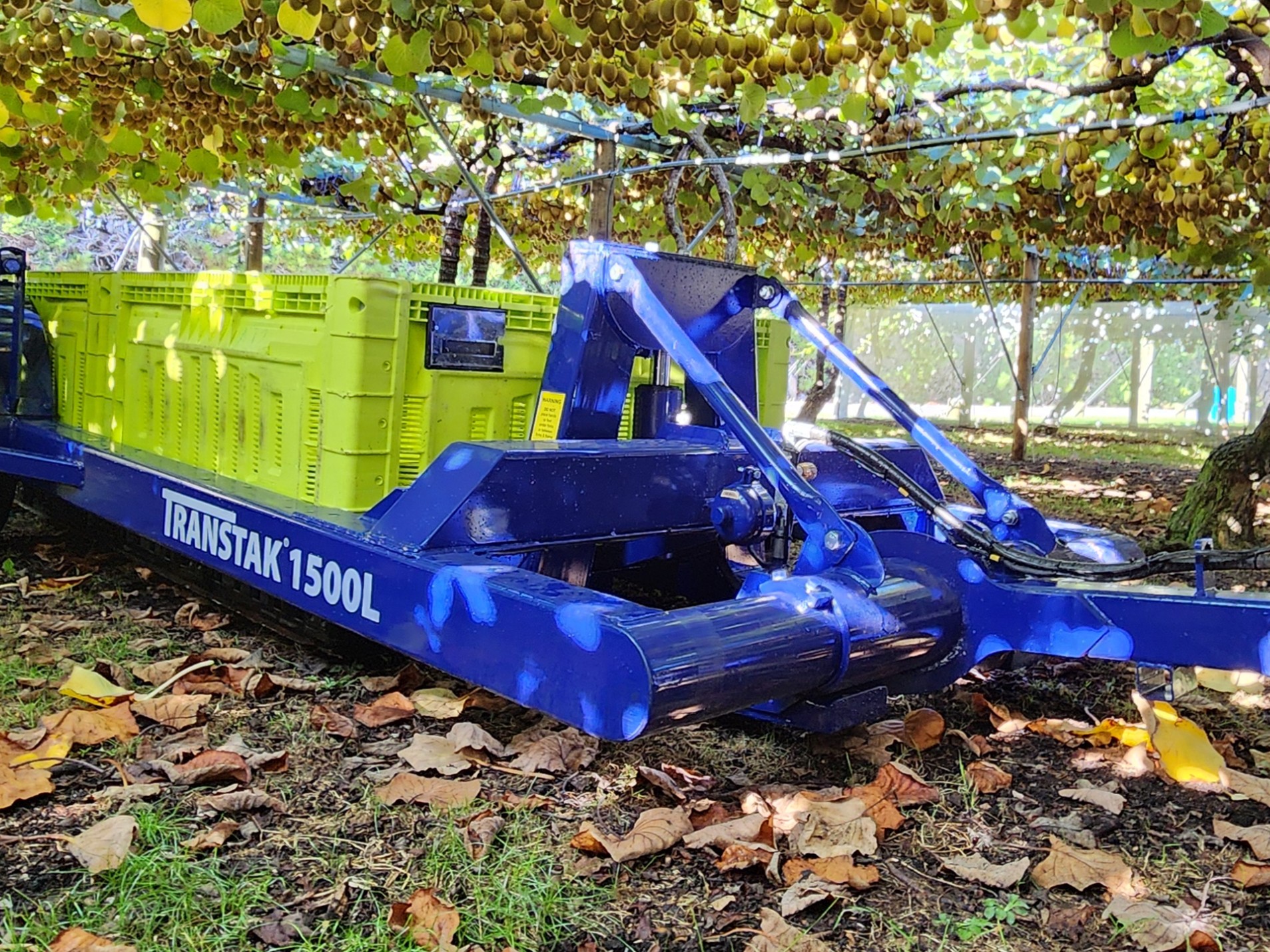

The Transtak 1500L is built tough for serious orchard work, carrying three bins (1,500 kg) and shifting up to 250 bins a day. With Transtak’s Soft-Ride Hydra-Pneumatic Suspension, it delivers market leading ride quality, protecting fruit from bumps and jolts on rough tracks and headlands.
Simple, reliable, and quick to use, single-lever operation makes loading and unloading effortless, while the heavy-duty RHS frame and pressed steel forks guarantee season-after-season durability.
Widely used across New Zealand horticulture — especially in kiwifruit — the 1500L is a proven workhorse for moving bins efficiently from orchard to packhouse.
It also works seamlessly with the Transtak 3500 Stacking Trailer, feeding bins from rows to headlands for six-bin collection. Together, they keep fruit flowing smoothly, reduce tractor passes, and cut fuel use, giving you a smarter, more efficient harvest.
Ready to put the 1500L to work in your orchard? Get in touch today!
One lever does it all — lift and lower bins with ease, making harvest smoother and faster with every quick lift & lower cycle saving time each day, all harvest.
When harvest is in full swing, you need gear you can trust. The 1500L is engineered tough with a bulletproof design, built to perform every day of the season without letting you down.
Transtak’s unique Hydra-Float soft-ride suspension system cushions every bump, protecting your fruit by delivering a smooth, stable ride through uneven headlands & orchard tracks.
Move more fruit with fewer trips. The 1500L carries three full bins at a time and can shift up to 250 bins a day, keeping your harvest flowing smoothly.
See exactly how much time and money a Transtak Bin Trailer saves your operation — compared to moving bins with a tractor/forklift system.
Enter the basics about your orchard and how you currently move bins.
Select the model you're interested in. This determines bins per trip and payback calculation.
Typical for NZ/AU farm operations. Adjust anything that doesn't match your operation.
We'll save your personalised ROI estimate and a Transtak expert may follow up with more detail. You only need to do this once per session.
Your details are used only to send you your results and for our team to follow up. We respect your privacy.
Carrying capacity: 3 fruit bins / up to 1,500 kg total load
Lift system: one-lever, one-hose hydraulic lift with fork tilt during lift & lower
Lift height: approx. 350 mm for ground-level loading and unloading
Fork load area: 3,600 mm x 1,300 mm (tensile steel, taper-formed forks)
Overall dimensions: length 5400 mm / width 1800mm
Suspension: Soft-Ride hydra-pneumatic suspension for stability and fruit protection
Wheel setup: 225/70R15 trailer wheels with 50 sq hubs & stubs
Mudguards: rolled steel with integrated deflector struts and bin lead-in rails
Drawbar: adjustable bolted hitch for height and fork angle adjustment
Daily bin capacity: approx. 250 bins in a 9-hour work day
Optional Accessory: Bin-Loc securing system for bin handling on steep or uneven terrain
Bin Capacity
Per Day
Hydra-Float Suspension
Lift & Lower Operation

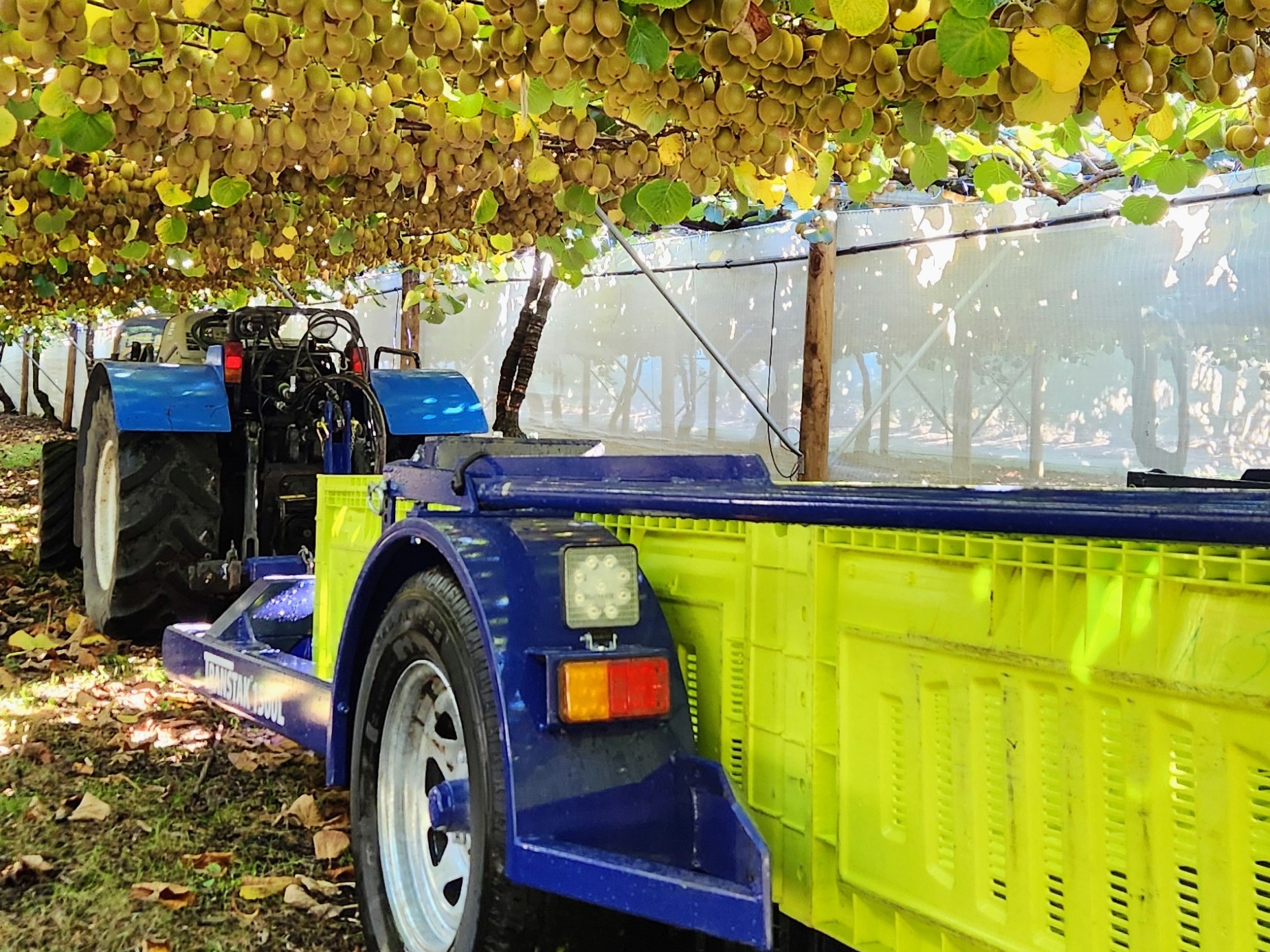

LED taillights & indicators for improved visibility and safety in all conditions. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug.
Powerful LED work lights for early morning or late-night harvesting — keeping your team productive in low light. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug & On/Off Switch
Sturdy Transtak jack stand designed specifically for Transtak bin trailers, provides secure trailer support when connecting & disconnecting trailer, changing tyres & when parked on uneven ground.
Transtak’s unique BinLoc system keeps bins secured firmly in place on steep slopes and rough terrain, improving safety and fruit protection.
Heavy-duty wheel guards protect tyres from deadman strikes and debris, extending tyre life and reducing downtime.
Be prepared for the unexpected. A complete spare tyre kit with Tyre Iron, Wheel, Wheel Mount & Jackstand ensures minimal downtime during harvest.
