The Transtak 3500NS is built for high-volume harvests, with the capacity to carry and stack 6 full bins (up to 3,500 kg). Designed to be front-mounted and fitted with fork side-shift, it makes positioning bins during stacking fast, accurate, and hassle-free.
Ideal for apple, citrus, and avocado orchards, the 3500NS delivers efficient stacking and transport in a shorter, more compact design. By stacking 3 bins on 3, it moves 6 at a time without the bulk or complexity of bin runner or chain trailers — giving growers greater manoeuvrability and versatility.

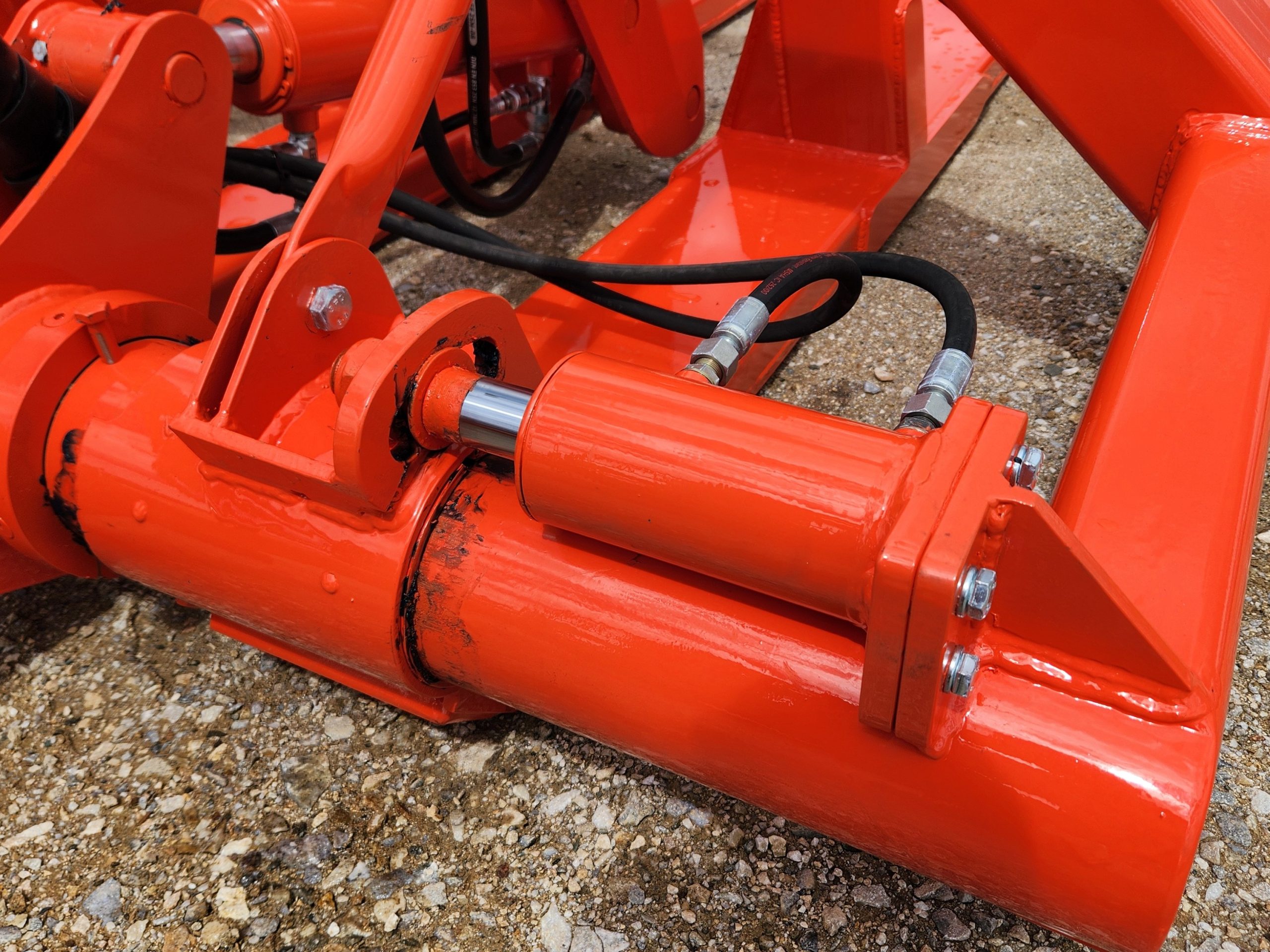

With Transtak’s hydraulic fork system and Soft-Ride Hydra-Float suspension, the 3500NS cushions every load, reducing bumps and jolts for a smooth, fruit-friendly ride. Built tough and grower-proven, it combines efficiency, simplicity, and protection in one smart package.
Transtak’s unique stacking system lifts and stacks bins to 1m high, with the 3500NS adding sideshift for front mount use, streamlining orchard logistics and keeping fruit moving independent of forklift operations.
When harvest is in full swing, you need gear you can trust. The 1500L is engineered tough with a bulletproof design, built to perform every day of the season without letting you down.
Transtak’s unique Hydra-Float soft-ride suspension system cushions every bump, protecting your fruit by delivering a smooth, stable ride through uneven headlands & orchard tracks.
Move more fruit with fewer trips. The 3500NS carries three full bins at a time and can shift up to 350 bins a day, keeping your harvest flowing smoothly.
Forks: 3,650 mm tapered tensile steel forks for strength and easy bin entry
Fork Control: hydraulic lift to 1.0m & tilt, plus 100 mm side-shift for precise bin positioning

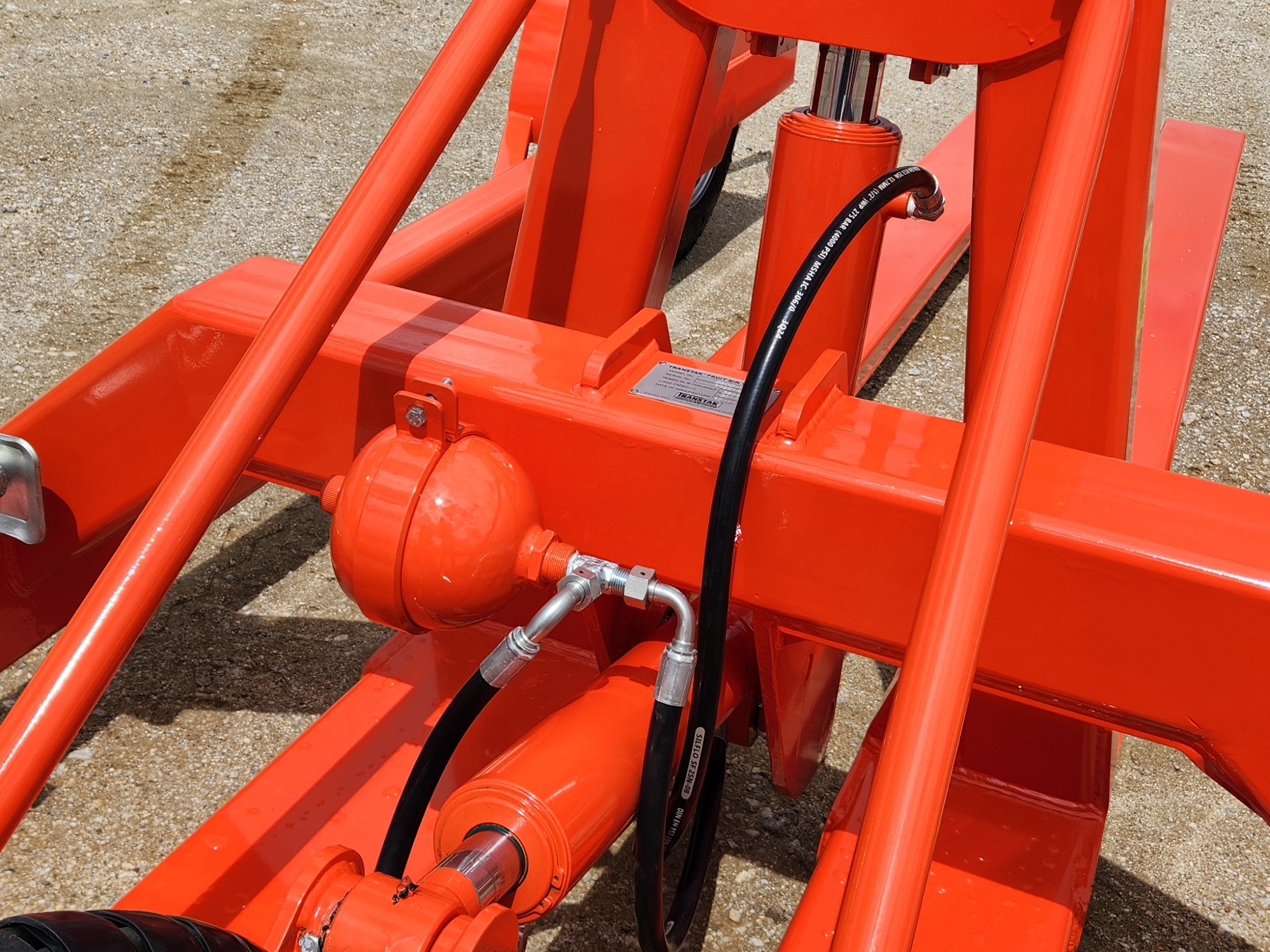

Suspension: Transtak Soft-Ride rubber & hydra-pneumatic suspension for smooth, fruit-friendly travel
Mudguards: rolled steel mudguards for durability and bin protection
Lift & Stack: 1.0 m lift height with stacking capability for six full bins
Width: 1,950 mm over wheels
Daily capacity: approx. 350+ bins per day under typical orchard conditions
Capacity
Per Day
Precise Bin Positioning
Hydra-Pneumatic Suspension

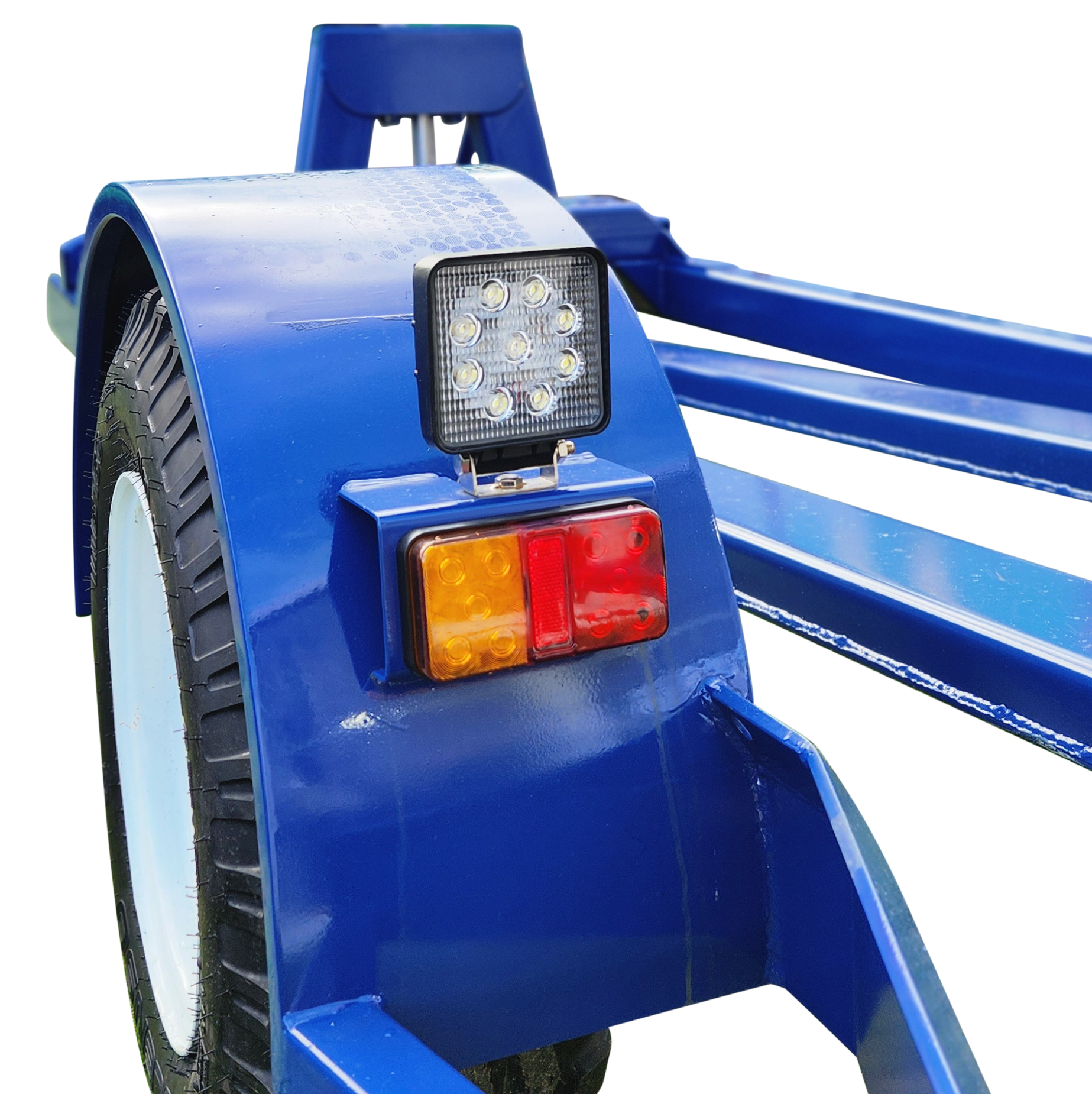

Stay compliant on road with LED taillights & indicators for improved visibility and safety in all orchard and road conditions. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug.

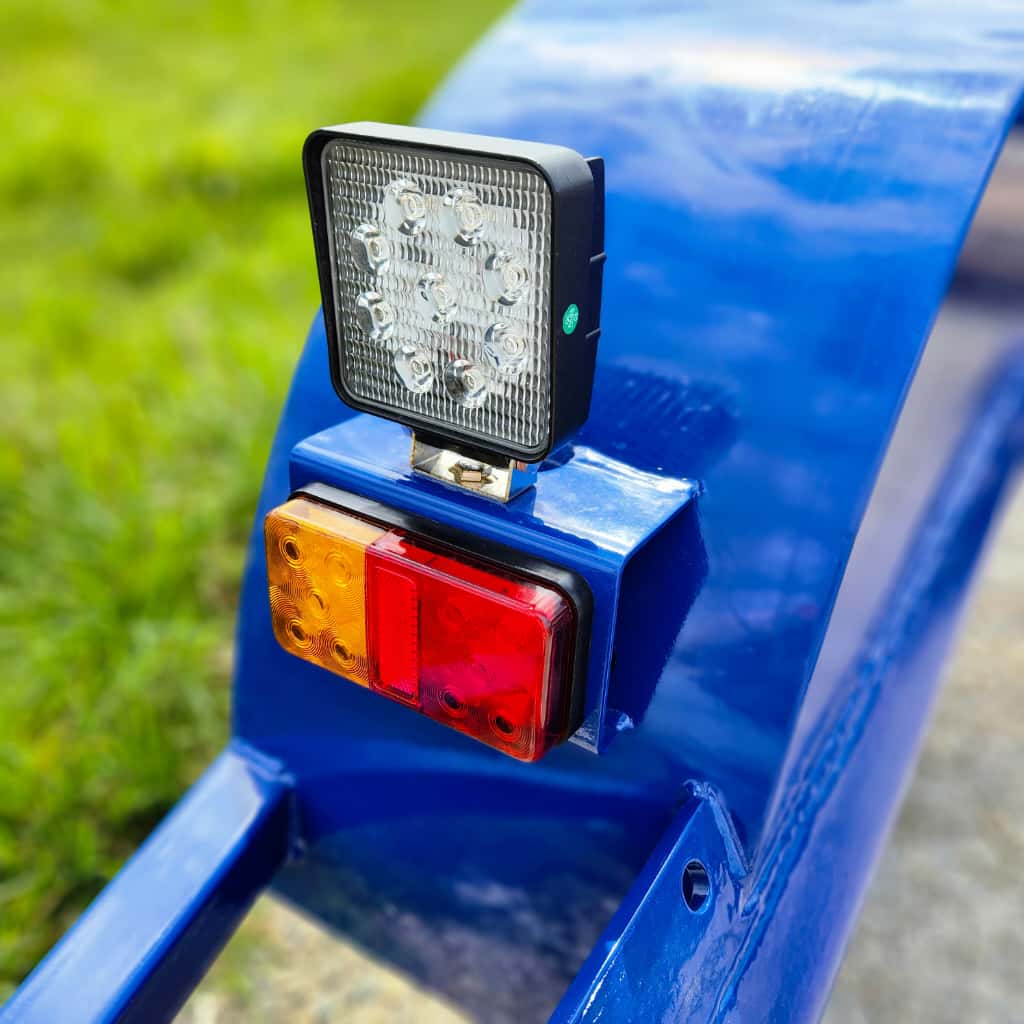

Powerful LED work lights for early morning or late-night harvesting — keeping your team productive in low light. IP67 Rated & Sealed wiring harness with 7 Pin round trailer plug & On/Off Switch
Sturdy Transtak jack stand designed specifically for Transtak bin trailers, provides secure trailer support when connecting & disconnecting trailer, changing tyres & when parked on uneven ground.

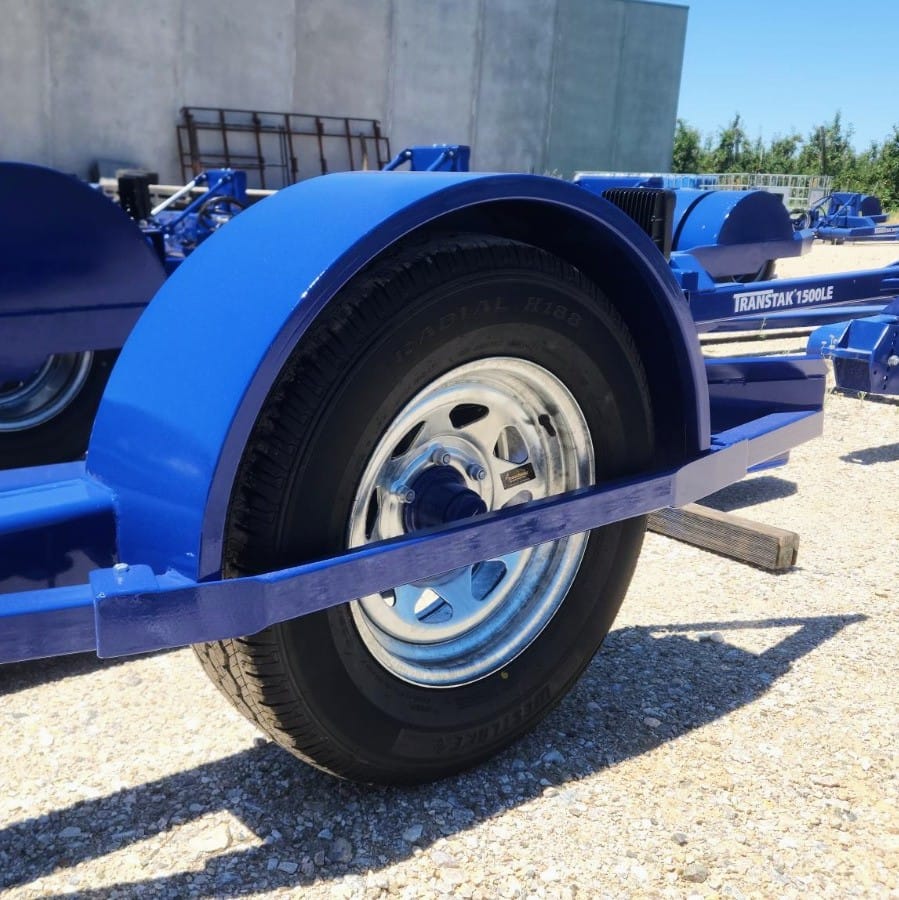

Heavy-duty wheel guards protect tyres from deadman strikes and debris, extending tyre life and reducing downtime.
