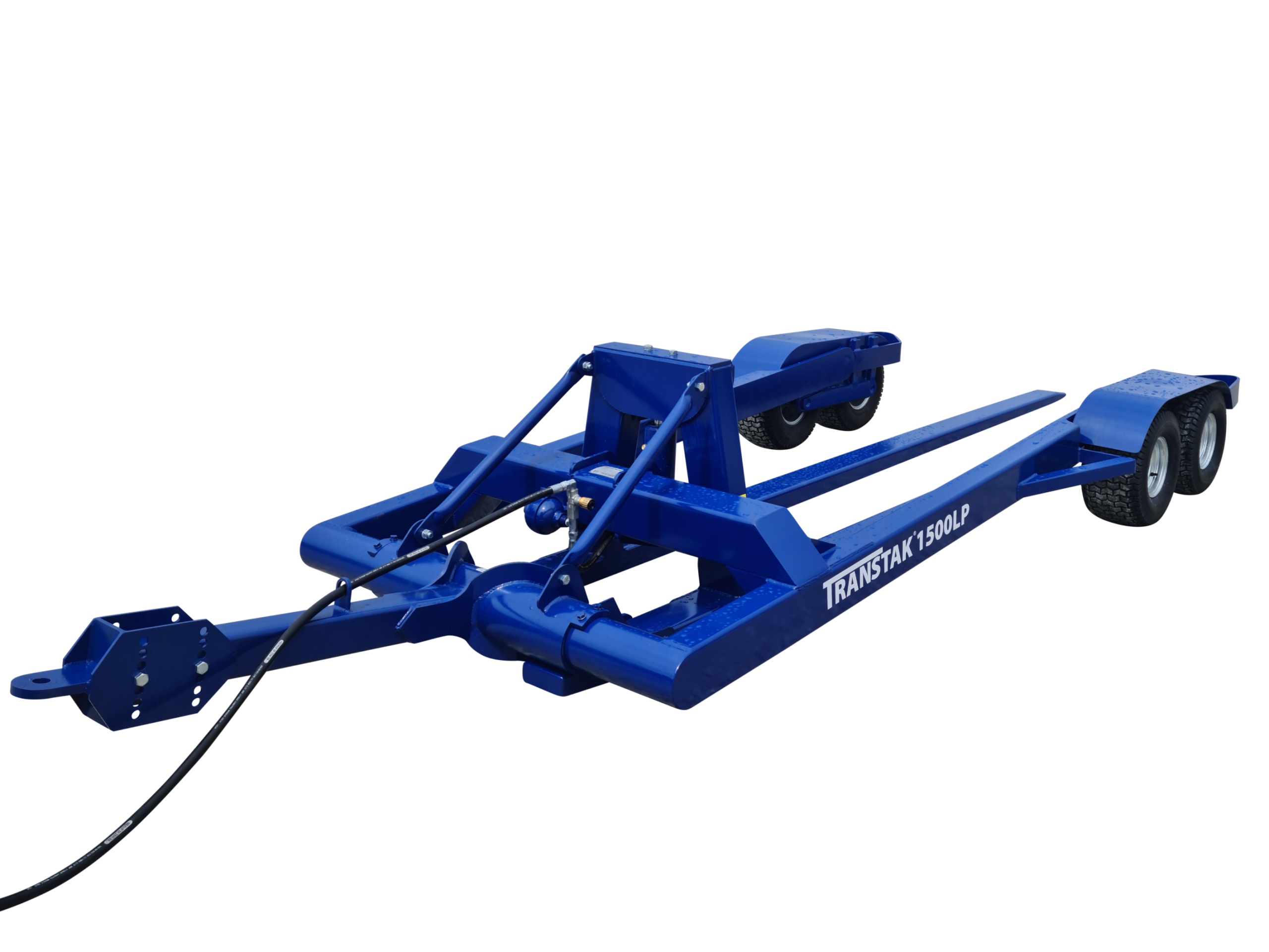

The Transtak 1500LP is purpose-built for modern, intensively planted orchards. Its low-profile design, tandem axle setup, and reduced mudguard height make it ideal for working in rows as narrow as 3.0m, where standard trailers can’t reach. With low ground pressure and compact access, the 1500LP is perfectly suited to servicing pickers and platforms in tight rows and orchard layouts.
Working seamlessly with the Transtak 3500N Stacking Trailer, the 1500LP carts 3 bins from rows to headlands, ready for combining into six-bin collection and transport. Together, they keep a constant flow of empty and full bins moving, cutting downtime and making harvest faster and more efficient.
The smart solution for high-density orchards — built tough, easy to use, and ready to keep your fruit moving.
One lever does it all — lift and lower bins with ease, making harvest smoother and faster with every quick lift & lower cycle saving time each day, all harvest.
When harvest is in full swing, you need gear you can trust. The 1500L is engineered tough with a bulletproof design, built to perform every day of the season without letting you down.

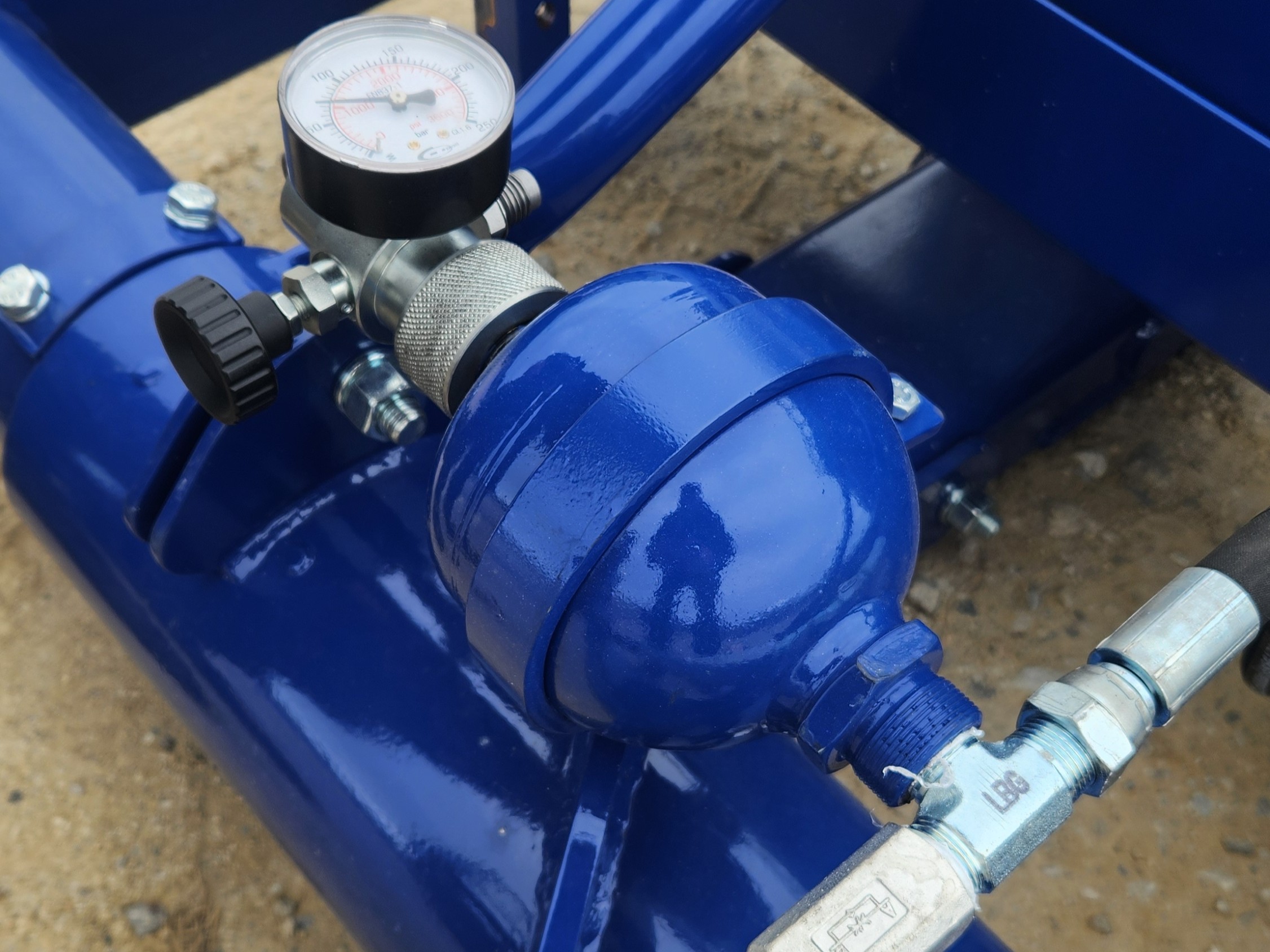

Transtak’s unique Hydra-Float soft-ride suspension system cushions every bump, protecting your fruit by delivering a smooth, stable ride through uneven headlands & orchard tracks.

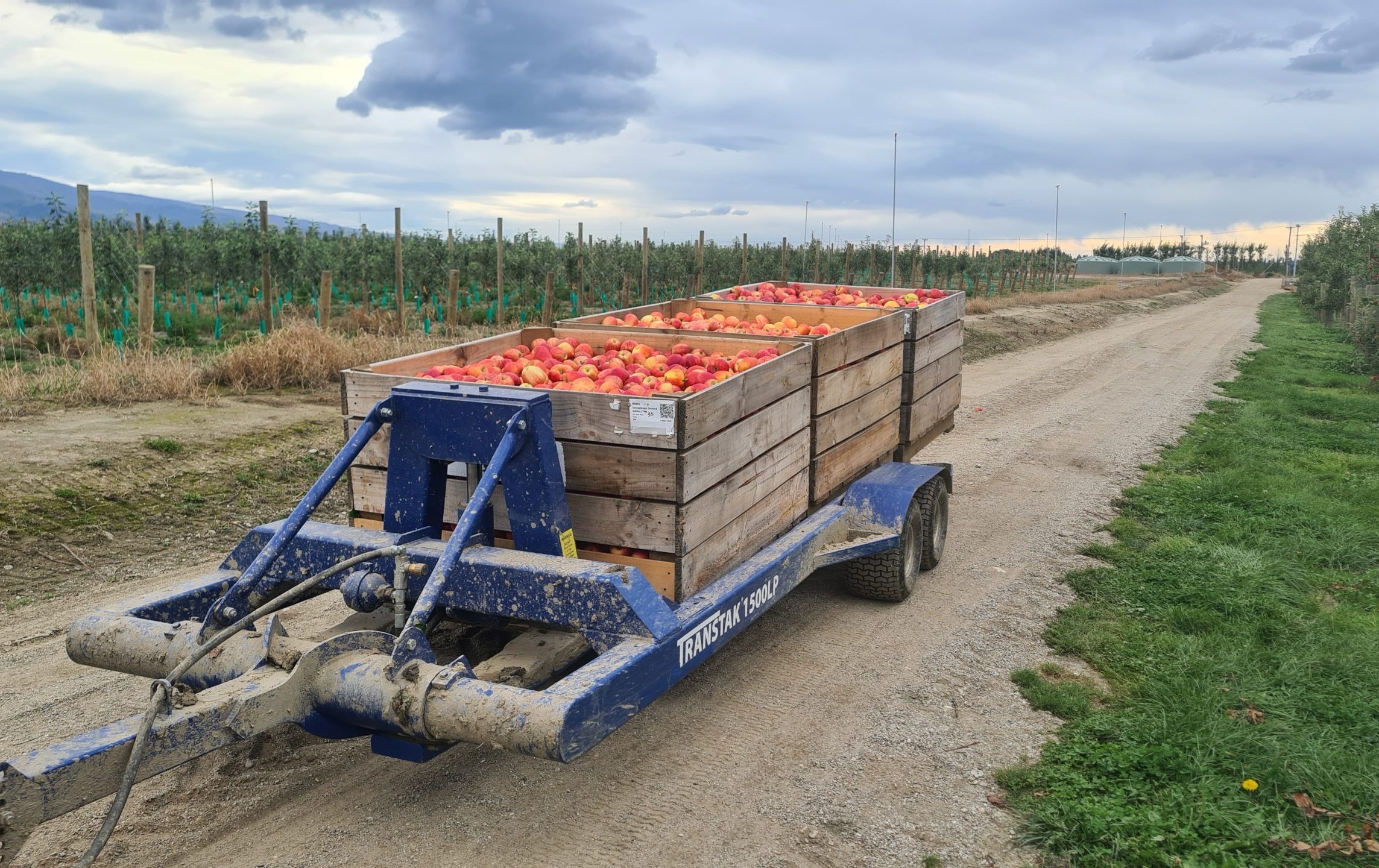

Move more fruit with fewer trips. The 1500LP carries three full bins at a time and can shift up to 250 bins a day, keeping your harvest flowing smoothly.
Capacity: carries 3 fruit bins / up to 1,500 kg total load
Lift & Tilt System: forks tilt back as they lift and lower level with the ground for smooth bin handling
Fork Load Area: 3,600 mm length x 1,300 mm width, tapered tensile steel design
Lift Clearance: approx. 350 mm at full lift
Drawbar: bolted hitch height and fork angle adjustment for flexibility across towing & pushing vehicles
Overall dimensions: length 5400 mm / width 1800mm
Suspension: Soft-Ride hydra-pneumatic suspension for stability and fruit protection
Wheel Setup: 18×9.50–8 NHS turf tyres on tandem wheel sets with rocker system
Low Profile Design: tandem axle rocker setup provides just 500mm mudguard height for access into 3m rows
Mudguards: rolled steel, fully lined and fitted with deflector struts for debris protection & trailer guidance
Daily Capacity: approx. 150 bins per day depending on operating conditions
Bin Capacity
Mudguard Height
Hydra-Float Suspension
Lift & Lower Operation

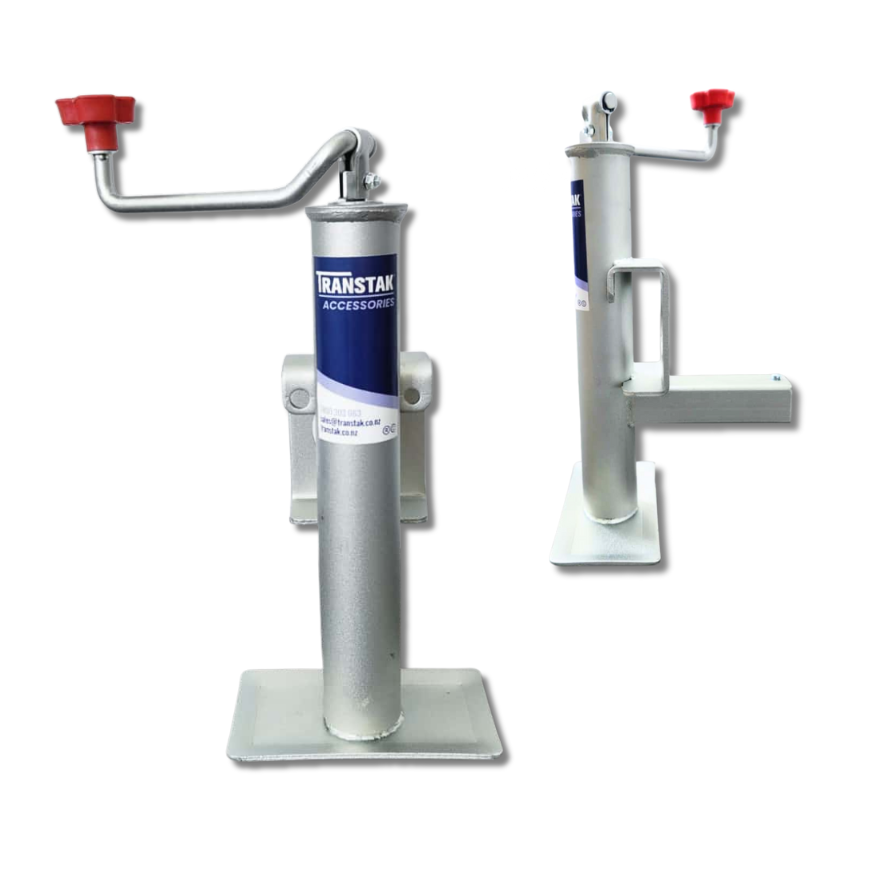

Sturdy Transtak jack stand designed specifically for Transtak bin trailers, provides secure trailer support when connecting & disconnecting trailer, changing tyres & when parked on uneven ground.
Be prepared for the unexpected. A complete spare tyre kit with Tyre Iron, Wheel, Wheel Mount & Jackstand ensures minimal downtime during harvest.
