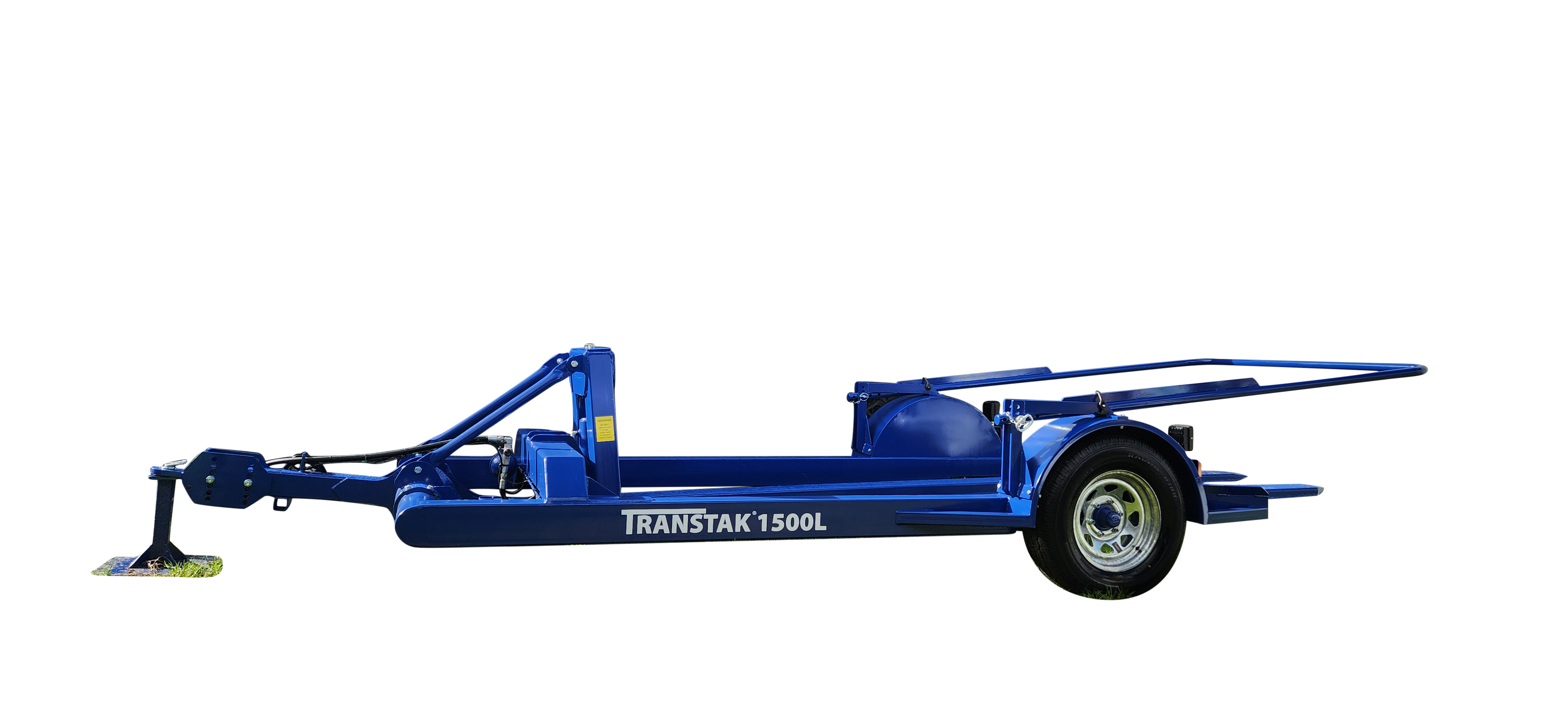

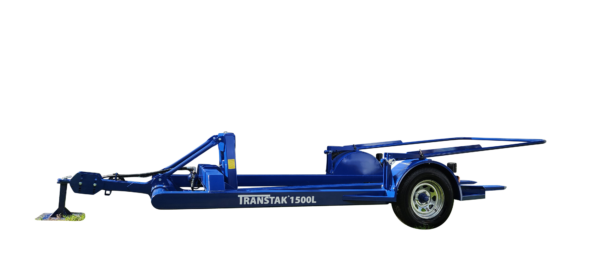

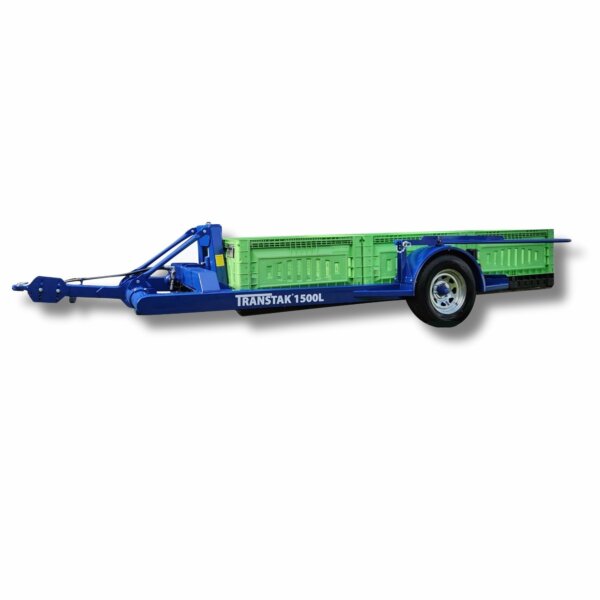

1500L – 3 Bin Trailer
Widely used throughout horticulture in New Zealand and most commonly in the Kiwifruit industry, Transtak’s 1500L Trailer is excellent at moving bins of fruit efficiently from the Orchard to the Packhouse, shifting up to 250 bins a day.
The 1500L works well with the Transtak 3500 Trailer, carting bins from rows to headlands, to be stacked and moved away with the Transtak 3500 in lots of 6 full bins. Using these trailers together ensures a constant flow of empty and full bins meaning fruit is shifted much faster and more efficiently.
Interested in trying this on your orchard? get in touch today!
Description
Built tough for the orchard, the Transtak 1500L 3 Bin Trailer is your go-to solution for moving multiple bins with maximum stability and minimal fuss. Designed specifically for demanding horticultural environments, this trailer will transport 3 Fruit Bins fast and efficiently while protecting the fruit with a soft & bump free ride.
With our Transtak Soft-Ride Hydra-Pneumatic Suspension System, these are the softest riding trailers on the market.
Engineered with simplicity in mind, the 1500L is easy to use, quick to load, and reliable season after season — all while reducing your tractor passes, fuel usage, and time spent shifting bins.
Key Features
-
Carries 3 Bins / 1500kg – Increase your daily bin movement capacity.
-
Simple Loading Mechanism –The load tilts back as it lifts to its full height and lowers level with the ground to load bins. Ground clearance at full lift-350 mm.
-
Suspension – Transtak’s Soft-Ride rubber & hydra-pneumatic suspension ensuring a soft ride for the fruit and reducing the risk of damage.
-
Trailer Sizes –Tapered tensile steel forks-3600 mm length x 1300 mm width load space. Total Trailer Length 5.4m x 1.75m wide
-
Heavy-Duty Chassis – Built for New Zealand’s rough terrain.
-
Proven Design – Based on 30 years of development
-
One Lever, One Hose Lift & Lower Operation – Simple, reliable hydraulics for effortless use across tractors.
- Adjustable Hitch Height – Bolted hitch height & fork angle adjustment.
-
Optional Bin Lock System – For secure transport on hills and bumpy ground.
-
Wheels – 225/70R15 – 235mm wide trailer wheels / 50sq hubs & stubs.
- Mudguards – Steel Rolled mudguards covered inside & fitted with deflector struts.
- Capacity – approx.- 250 Bins on average over a 9 Hour Day
Accessories:
Upgrade your trailer with smart extras:
-
-

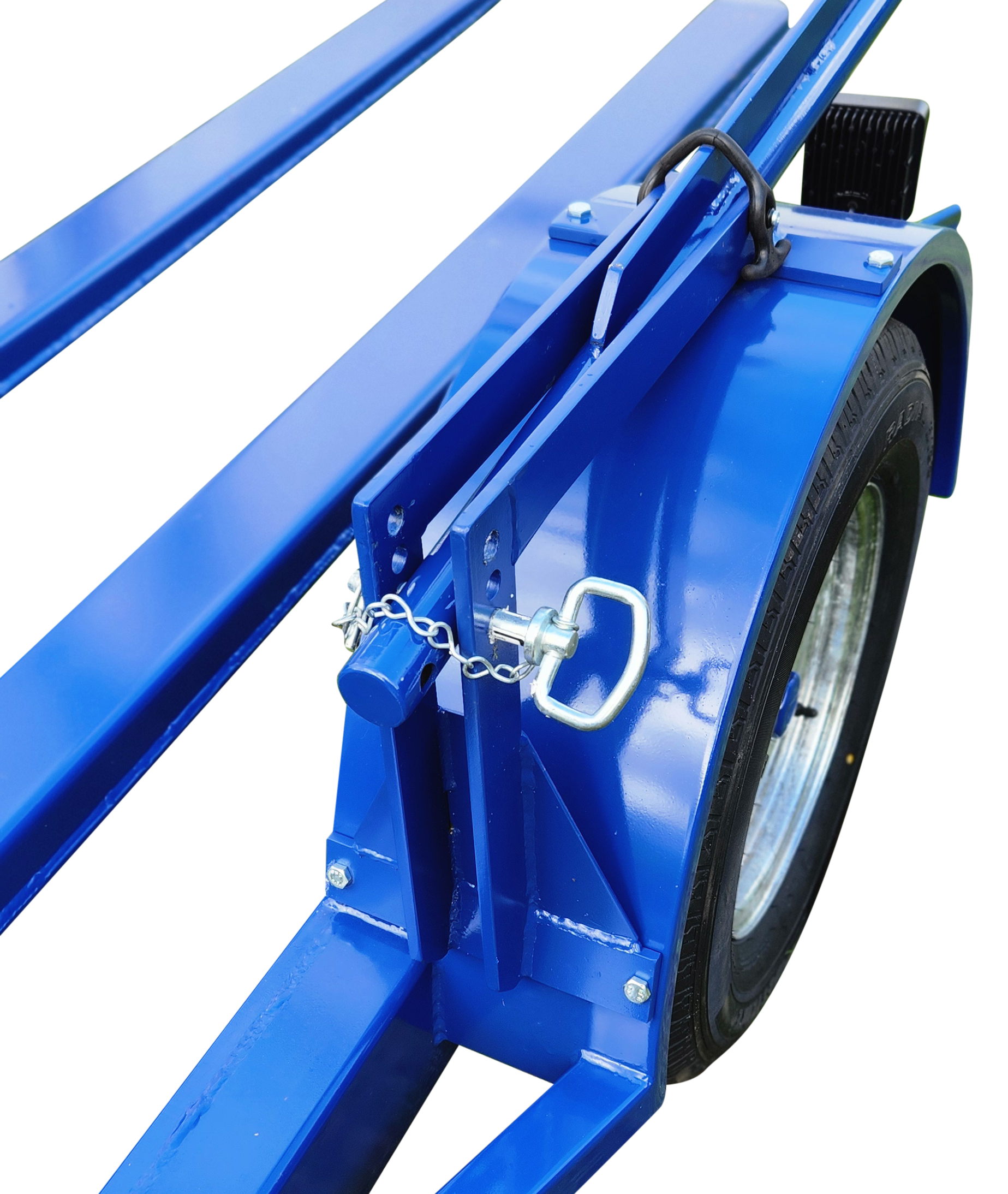

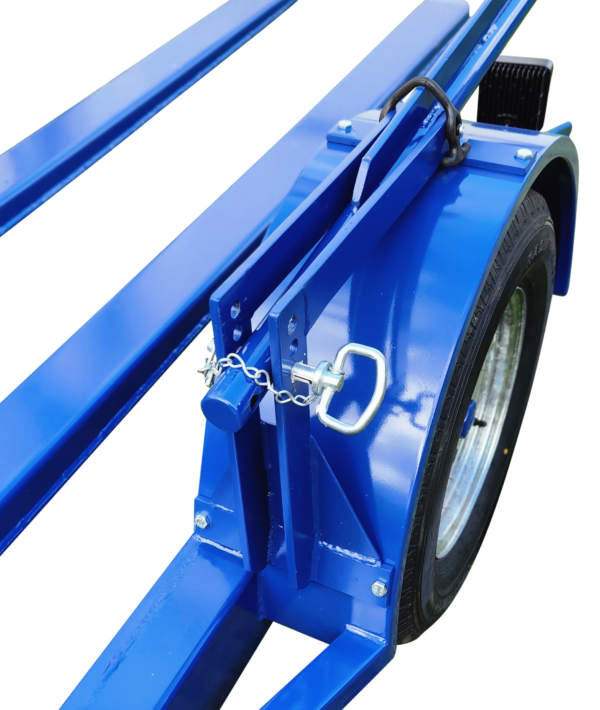

Bin-Loc Bin Retention System – Holds bins securely in place on steep & uneven ground
-

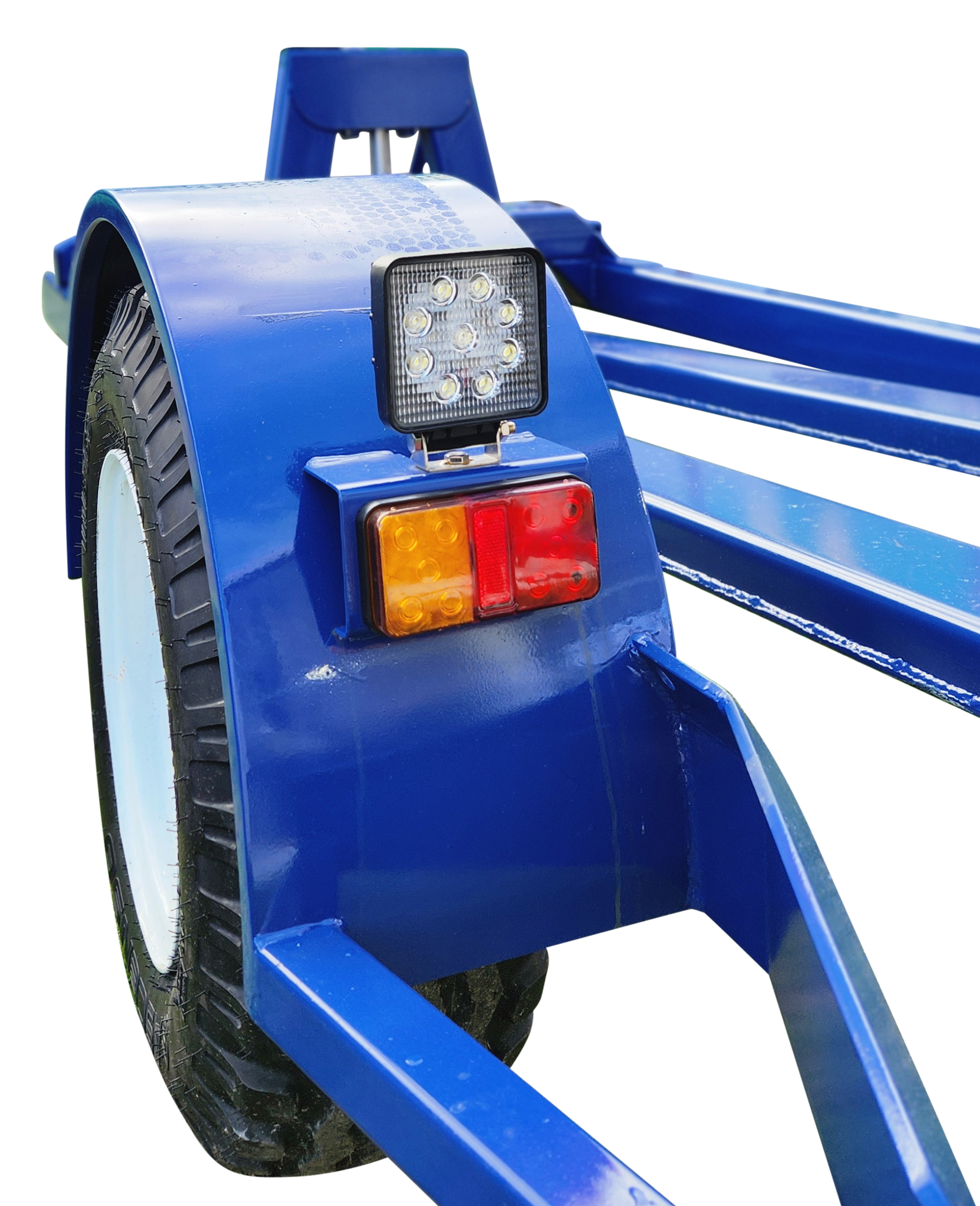

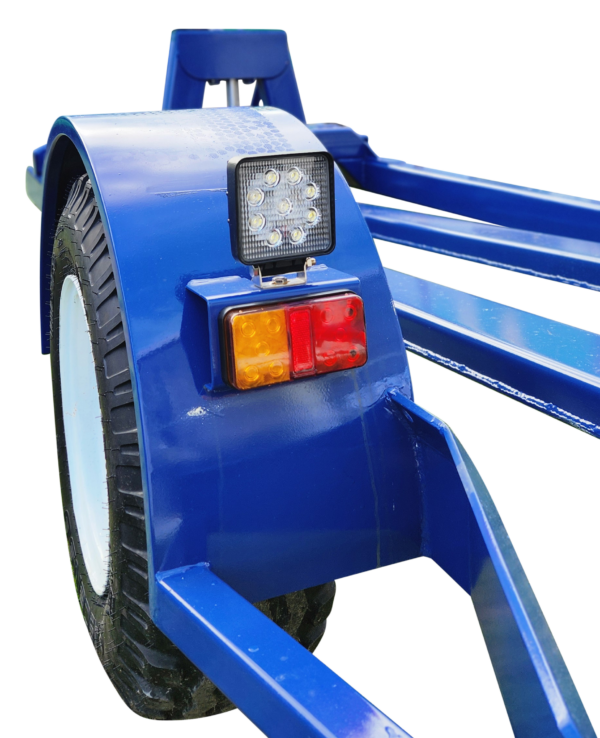

Road Lighting Kit – Lights & Indicators, stay safe and compliant on public roads
-
Work Light Package – LED Worklights, illuminate early mornings and late finishes
-
Jack Stand – easily connect trailer to towing vehicle
-
Wheel Guards – Protect Tyres and improve trailer safety
-
Check out our new BIN-LOCK System for operation on Steep Slopes
